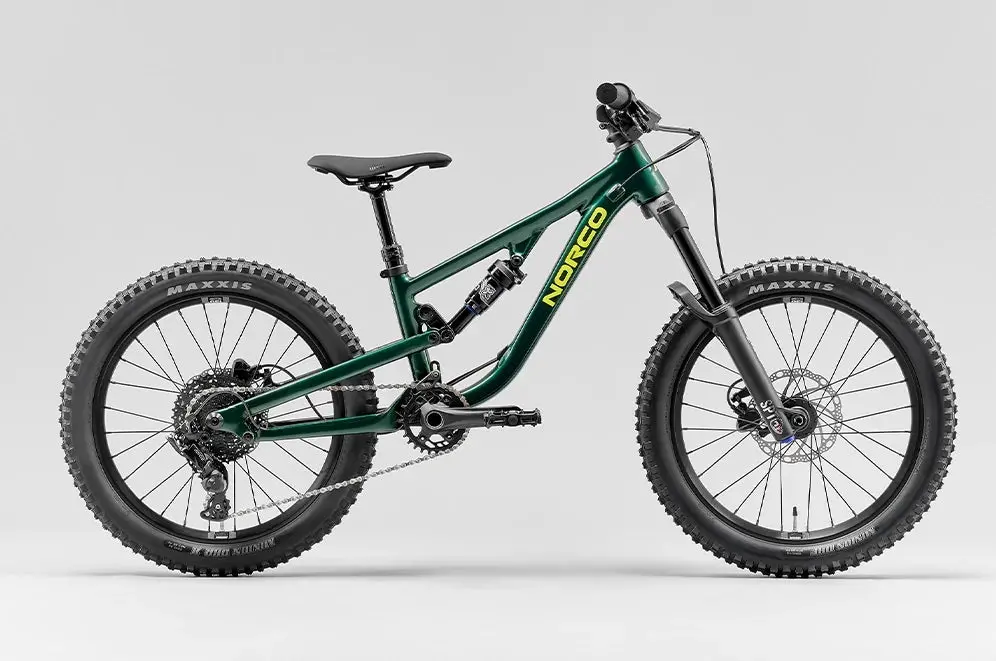

Norco Fluid FS Youth 20″ MTB – Compact Full-Suspension Bike for Smaller Riders

Description

The Norco Fluid FS 20 is a 120mm full-suspension youth trail bike with progressive handling, low standover, and a kid-tuned dropper designed for 7–10-year-old riders under 90 pounds.

Specifications

Frameset

Frame: 6061 alloy, 120mm travel, UDH
Fork: Manitou JUNIT Sport 20″, 120mm travel, 40mm offset
Rear Shock: X-Fusion 02 Pro R, 170x30mm, A-Tune Soft

Drivetrain

Shifter: microSHIFT Advent, 9-speed
Rear Derailleur: microSHIFT Advent, 9-speed, short cage clutch
Crankset: Prowheel Junior alloy, 28T, 127mm
Bottom Bracket: Prowheel cartridge
Cassette: microSHIFT Advent, 11–38T, 9-speed
Chain: KMC X9, 9-speed

Brakes

Front: Tektro HD-J285, 2-piston, resin pads, 160mm rotor
Rear: Tektro HD-J285, 2-piston, resin pads, 160mm rotor
Levers: Tektro HD-J285, 2-finger blade

Components

Handlebar: Norco 6061 alloy double-butted, 660mm width, 20mm rise
Stem: Norco 6061, 35mm length, 31.8mm clamp
Seatpost: TranzX YSP18BKL dropper, 31.6mm, 100mm, kids tune
Headset: Tapered 1-1/8″–1.5″ (ZS44/28.6 | ZS56/40)
Saddle: WTB Solano Medium, 142x240mm, steel rails
Grips: Norco youth lock-on, 115mm
Seatpost Clamp: Norco alloy nutted, 34.9mm

Wheels

Front Hub: Formula DC-511, 15x110mm Boost, 28H, 6-bolt
Rear Hub: Formula DC-3248, 12x148mm Boost, HG, 28H, 6-bolt
Rims: WTB TCS 2.0, 27mm inner width, 28H
Front Tire: Maxxis Minion DHF 20×2.4″, EXO, folding
Rear Tire: Maxxis Minion DHR II 20×2.3″, EXO, folding
