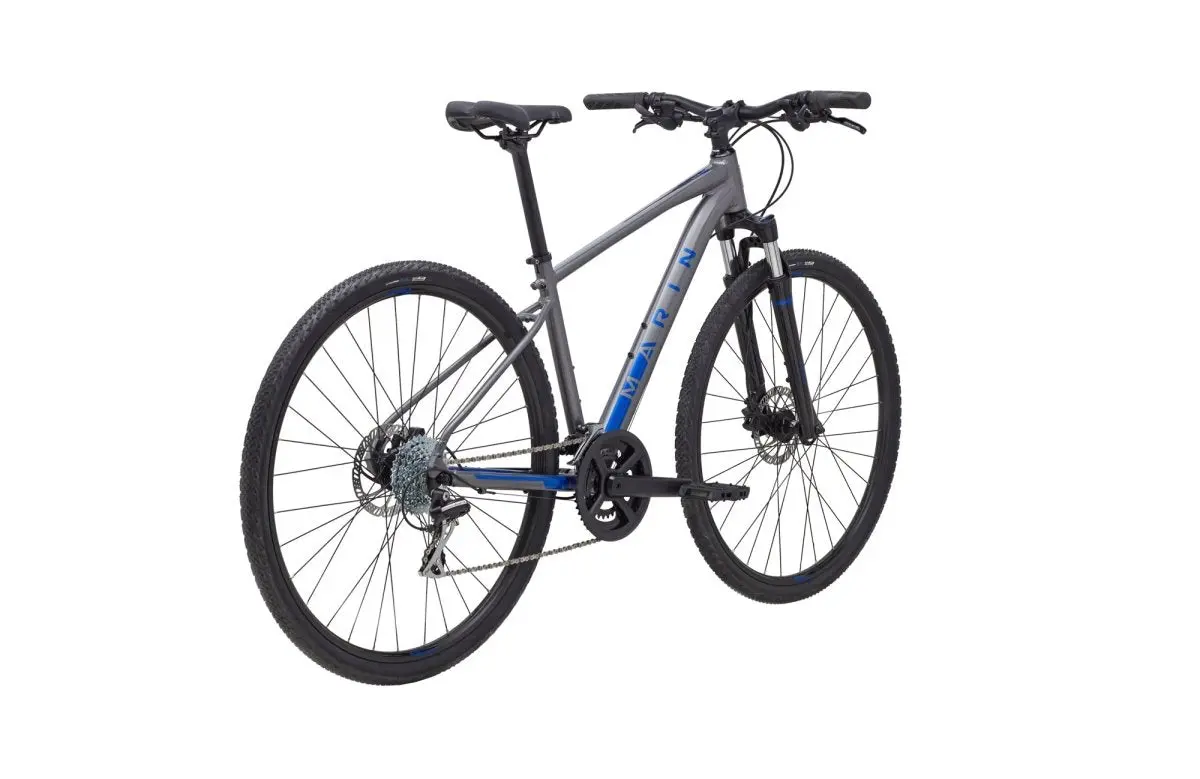

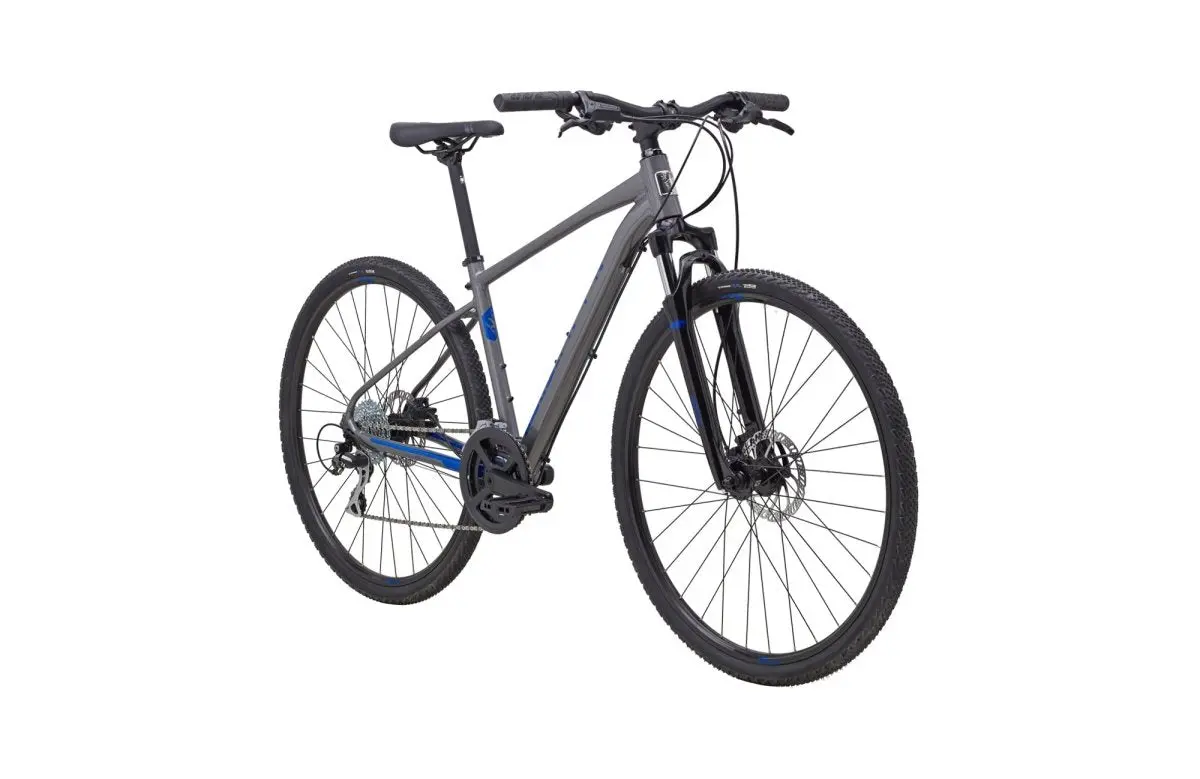

Marin San Rafael DS2 Hybrid Bike – Dual-Sport Fitness Model with Comfort Geometry

Description

Built around a Series 2 6061 aluminum frame with front suspension, a Shimano 2×8 drivetrain, and hydraulic disc brakes, this dual-sport bike delivers smooth, confident performance for daily rides, commutes, and weekend adventures.

---

Specifications

Frameset

Frame: Series 2 Dual Sport 6061 Aluminum, 700C wheels, disc brake compatible
Fork: SR Suntour NEX Disc HLO, 63mm travel, hydraulic lockout, preload adjustment

Drivetrain

Rear Derailleur: Shimano Acera, 8-speed
Front Derailleur: Shimano FD-TY710
Shifters: Shimano Altus SL-M315, 2×8-speed
Crankset: Forged alloy, 46/30T chainrings with ring guard
Bottom Bracket: Sealed cartridge bearings, square taper
Cassette: SunRace 11–34T, 8-speed
Chain: KMC Z8

Brakes

Front: Clark’s Clout hydraulic disc, 160mm rotor
Rear: Clark’s Clout hydraulic disc, 160mm rotor
Brake Levers: Tektro hydraulic

Wheelset

Rims: Marin aluminum double-wall, disc-specific
Front Hub: Forged aluminum alloy, 32H, disc
Rear Hub: Forged aluminum alloy, 32H, disc
Tires: Vee Tire Co. Rail, 700×40mm, wire bead
Spokes: 14g black stainless steel

Cockpit

Handlebar: Marin alloy riser
Stem: Marin alloy, 31.8mm clamp
Grips: Marin ergonomic locking
Headset: FSA No.10-P

Saddle & Seatpost

Saddle: Marin Fitness Plush
Seatpost: Marin alloy, 27.2mm

Pedals

Dual sport platform
