Description

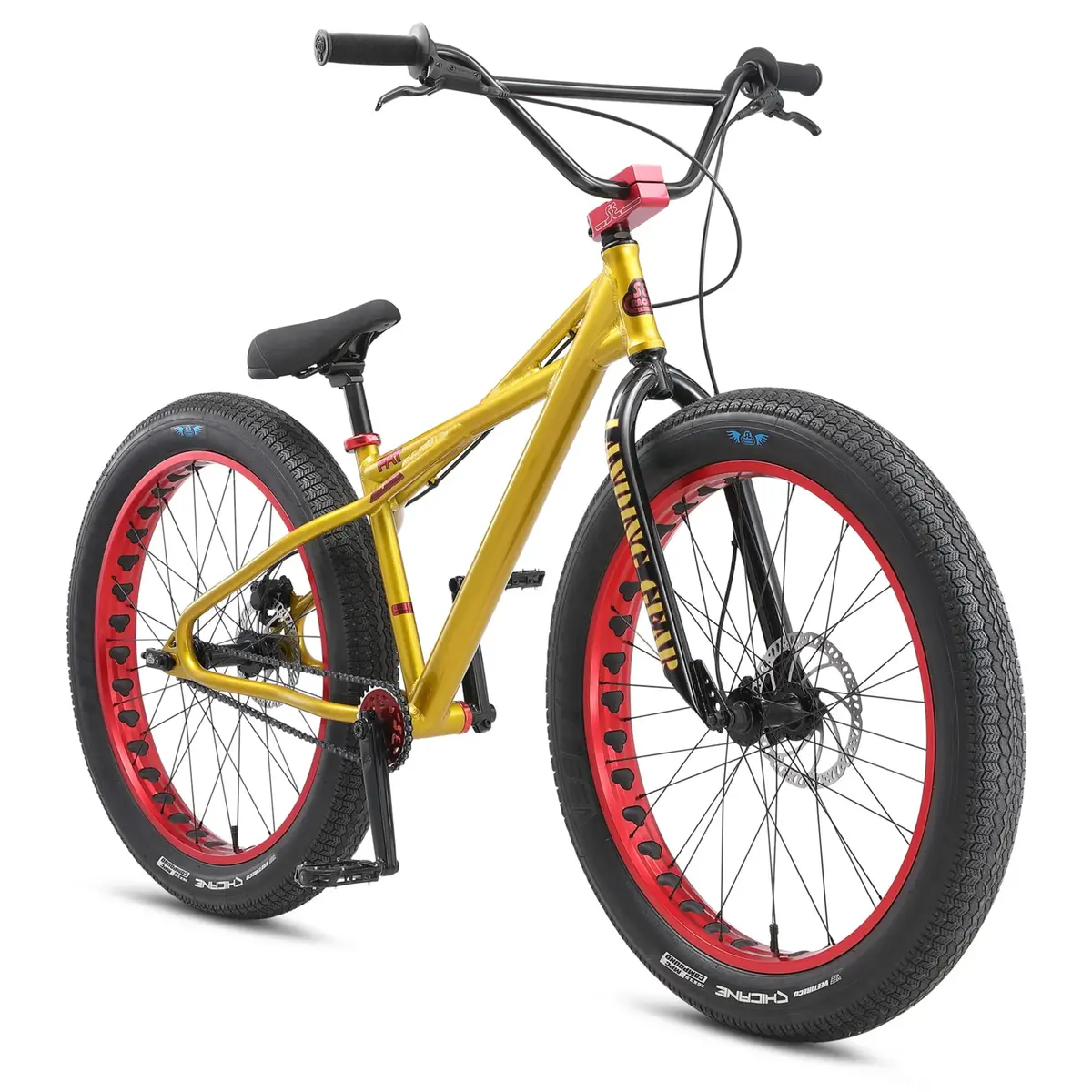

The SE Fat Quad 26 rolls on massive 26×3.5″ tires with legendary BMX styling, hydraulic disc brakes, and a full chromoly Landing Gear fork, delivering smooth, unstoppable fun from pavement to sand.
Specifications
Frame: 6060 aluminum, single downtube Fat Quad design, integrated head tube, looptail rear, retro dropouts, 100mm Euro bottom bracket, 170mm spaced dropouts, disc brake tabs
Fork: Landing Gear full chromoly, disc tabs, 450mm axle-to-crown, 38mm offset, 135mm spaced dropouts
Headset: FSA Orbit CE, sealed 1-1/8″ integrated
Drivetrain
Crankset: SE V-Ridge 3-piece chromoly, 175mm, external sealed bearing Euro bottom bracket, 27T alloy SE Racing sprocket
Chain: KMC S1
Pedals: X-Pedo low-profile platform with removable pins
Brakes
Brakeset: Tektro HD-M285 hydraulic disc, dual piston
Rotors: 180mm front / 160mm rear
Levers: Tektro HD-M285 2-finger alloy
Components
Handlebar: Big Honkin’ chromoly cruiser bar, 29″ width, 12° backsweep, 2° upsweep
Stem: Retro alloy top-load, 55mm reach
Grips: ODI Mushroom II dual-ply
Seatpost: Micro-adjust alloy, 27.2mm
Seat Clamp: SE Racing Champ clamp, 31.8mm
Saddle: SE Flyer seat with built-in bottle opener brace
Wheels
Rims: SE Bubble Fat, 65mm
Hubs: Alloy 36H, sealed rear, 135mm front / 170mm rear
Spokes: Stainless steel
Tires: Vee Tire Co x SE Racing Chicane, 26×3.5″, 72 TPI
Accessories
Included: SE chain tensioners, alloy valve caps
Weight
16.23 kg / 35.8 lbs
