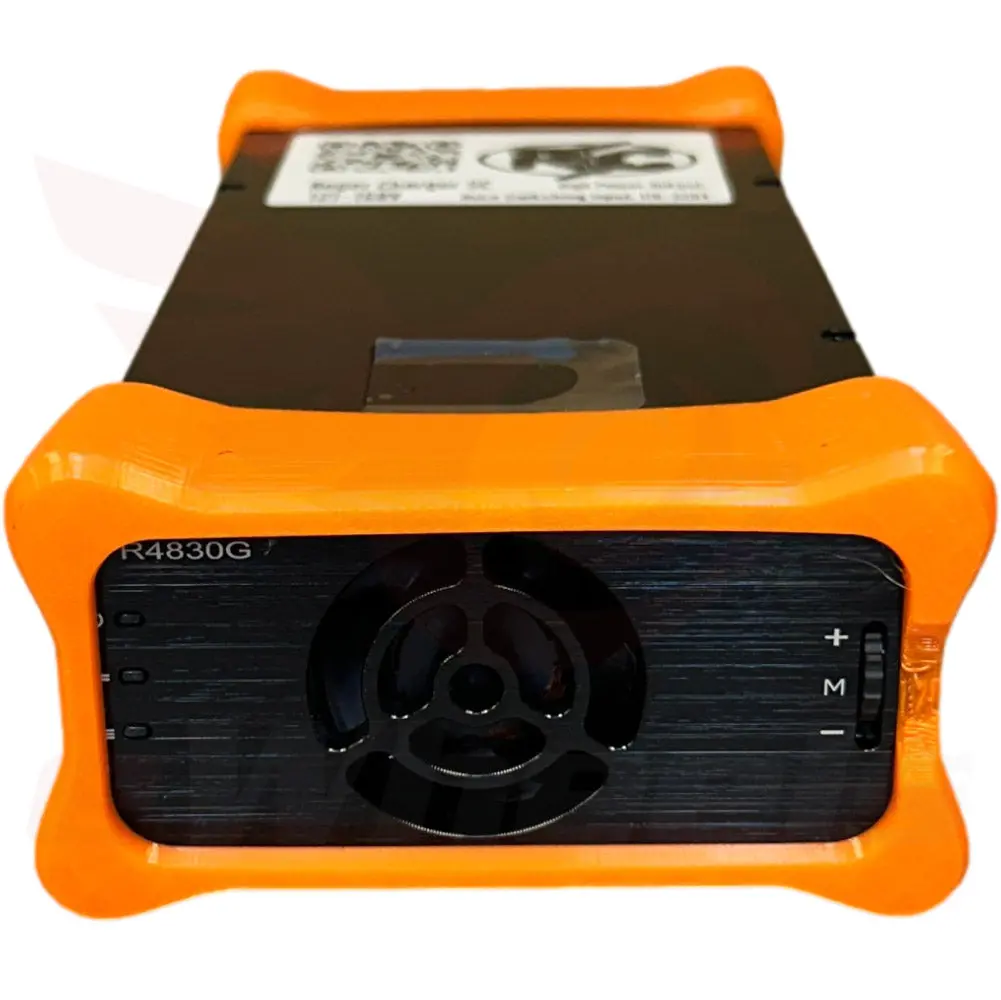

Roger SC Series Smart Charger – 150–212V DC, 1600W (110V) / 2000W (220V)

Description

• Supports the most common voltages/adapters of newer generation Electric Unicycles, adjustable to 151.2V, 168V, 176V, and 210V.
• See below for maximum amperage details, Wheel hardware limits may still apply.
• Large digital display readout with: voltage, amperage, watts, temperature, time, Ah, & Wh data
•  Dimensions: 8.2″L x 3.75″W x 1.8″H and 4lb weight.
• Single DC output wire, with the following adapters included:
  • 151V Y-splitter, GX20-5 dual port
  • 168V & 210V, single port each, on the same Y-junction. GX20-3 (168V), & GX20-2 (210V)
  • Currently out of 176V adapters, more on the way

• IMPORTANT 1: before connecting the charger to the Wheel, please check the charger’s output voltage & ensure current limits do NOT exceed the rated outlet amperage (15A is typical on most 110V receptacles).
• IMPORTANT 2: see the maximum current values possible from different AC input voltages below:

110V AC Input, SC212: 1,600W power limit (assuming 15A outlet):

• 151V: up to 10.5A
• 168V: up to 9.5A
• 176V: up to 9A
• 210V: up to 7.5A

220V AC Input, SC212: 2,000W power limit:

• 151V: up to 13A
• 168V: up to 12A
• 176V: up to 11A
• 210V: up to 9.5A
