Description

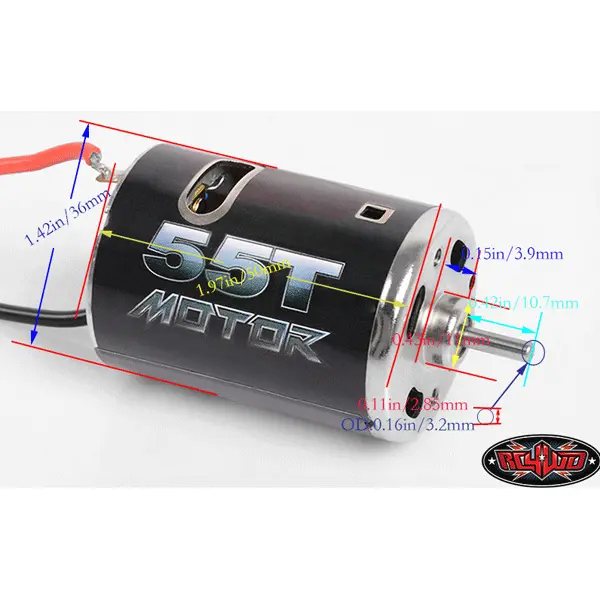

540 Crawler Brushed Motor From RC4WDCustom made to fit all popular trucks such as Bully, AX10, Trail Finder!Specifications:Custom made 540 steel case.Chrome plated case.Built in capacitor for minimizing glitch.High torque magnet and rotor.Small footprint (50mm long).Tuned for rock climbing and scale driving.Polished Bushings.Body OD: 1.39in / 35.5mmOutput Shaft Length: 0.43in / 11mmOutput Shaft: 0.12in / 3.1mmMin and Max Voltage Range: 2.4V-30V 35T Performance Specs:(At no load) RPM @ 7.2V : 12500 (+-10%), 1.25Amp Current(Max Efficiency) RPM @ 7.2V : 10400 (+-10%), 4.62Amp CurrentDesigned operating temperature range: -30C to +80CMotor end play : .50mm maxNoise level: < 60db45T Performance Specs:(At no load) RPM @ 7.2V : 9500 (+-10%), .95Amp Current(Max Efficiency) RPM @ 7.2V : 8100 (+-10%), 4.29Amp CurrentDesigned operating temperature range: -30C to +80C,Motor end play : .50mm max,Noise level: < 60db.55T Performance Specs:(At no load) RPM @ 7.2V : 8000 (+-10%), .75Amp Current(Max Efficiency) RPM @ 7.2V : 6800 (+-10%), 3.35Amp CurrentDesigned operating temperature range: -30C to +80CMotor end play : .50mm maxNoise level: < 60db65T Performance Specs:(At no load) RPM @ 7.2V : 7000 (+-10%), .65Amp Current(Max Efficiency) RPM @ 7.2V : 5900 (+-10%), 2.79Amp CurrentDesigned operating temperature range: -30C to +80CMotor end play : .50mm maxNoise level: < 60db80T Performance Specs:(At no load) RPM @ 7.2V : 5500 (+-10%), .45Amp Current,(Max Efficiency) RPM @ 7.2V : 4450 (+-10%), 1.38Amp Current,Designed oprating temperature range: -30C to +80C,Motor end play : .50mm max,Noise level: < 60db. What’s included: 1x RC4WD 540 Crawler Brushed Motor
