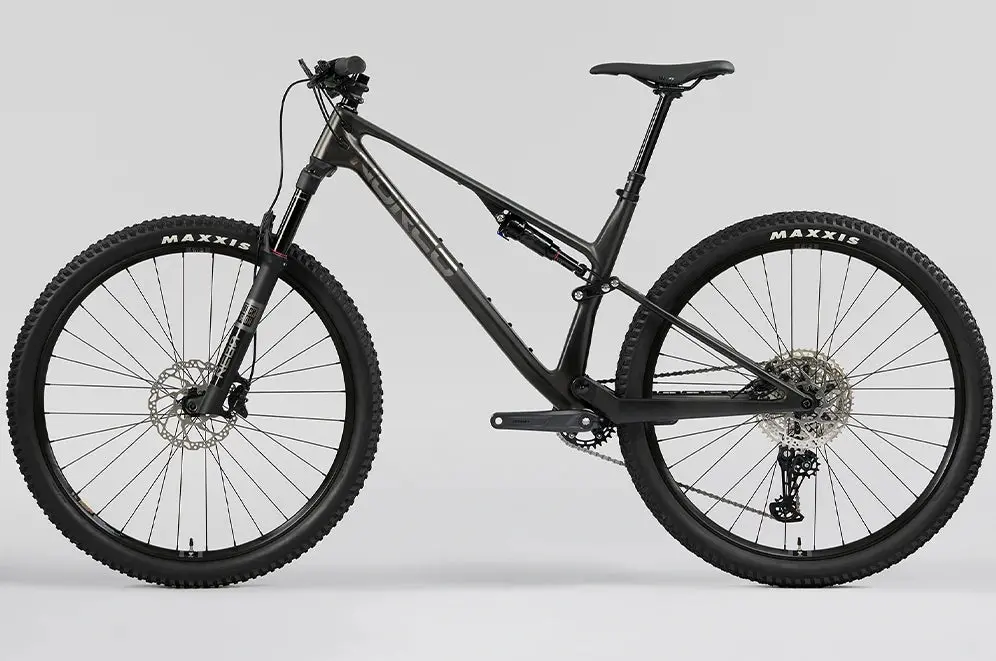

Norco Revolver FS C3 130mm Full-Suspension XC Mountain Bike – Lightweight Aluminum Frame, Trail-Optimized Geometry

Description

The Norco Revolver 130 is a lightweight carbon 130/120mm trail bike that blends cross-country speed with modern trail capability for fast climbs and confident descents.

Specifications

Frameset

Frame: Carbon, 120mm rear travel, UDH, Eagle Transmission compatible, Ride Aligned™
Fork: RockShox Reba RL, Motion Control, 130mm travel, 44mm offset

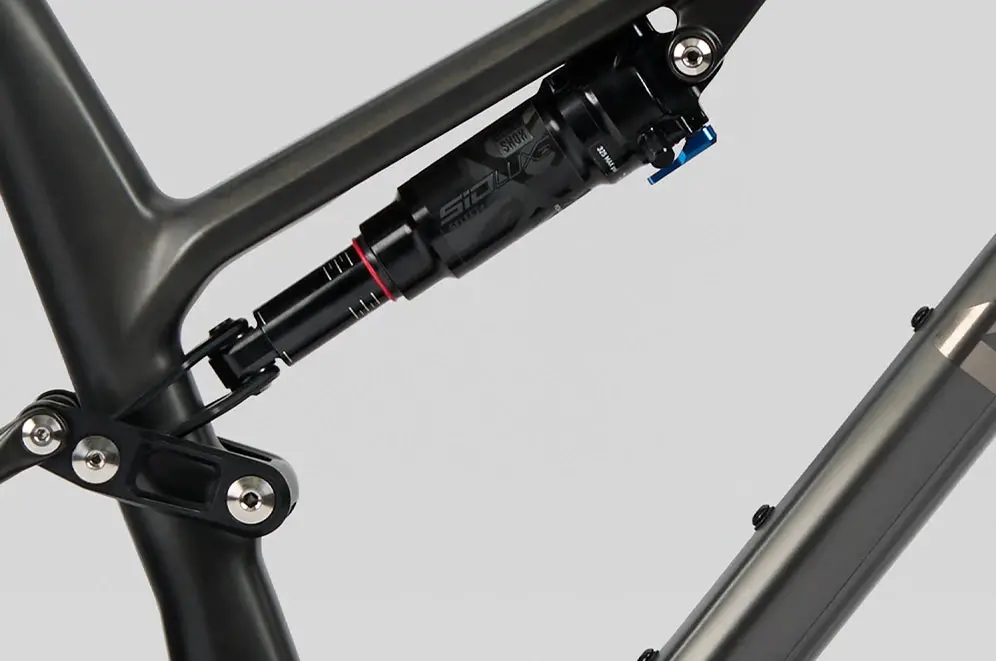

Rear Shock: RockShox SID LUX Select+, 190x45mm

Drivetrain

Shifter: Shimano Deore SL-M6100, 12-speed
Rear Derailleur: Shimano Deore RD-M6100, SGS, 12-speed
Crankset: Shimano Deore FC-MT512, 32T
165mm (S1)
170mm (S2, S3)
175mm (S4, S5)
Bottom Bracket: Shimano BB-MT501, BSA 73mm
Cassette: Shimano Deore CS-M6100-12, 10–51T
Chain: Shimano Deore CN-M6100

Brakes

Front: Shimano Deore BR-MT410, 2-piston, resin pads, 180mm rotor, Center Lock
Rear: Shimano Deore BR-MT410, 2-piston, resin pads, 180mm rotor, Center Lock
Brake Levers: Shimano Deore M4100

Components

Handlebar: 6061 alloy
760mm (S1–S3)
780mm (S4–S5)
20mm rise
Stem: Alloy, 50mm length, 35mm clamp
Seatpost: TranzX YSI36 dropper, 31.6mm
120mm (S1, S2)
150mm (S3)
170mm (S4)
200mm (S5)
Headset: FSA No.42/48ACB integrated, 1⅛”–1.5″ tapered
Saddle: WTB Silverado, medium
Grips: WTB Wavelength
Seatpost Clamp: Alloy bolted, 34.9mm

Wheels

Front Hub: Shimano Deore HB-MT410, 15x110mm Boost, 32H, Center Lock
Rear Hub: Shimano Deore FH-MT510, 12x148mm Boost, Micro Spline, 32H, Center Lock
Rims: WTB ST i27 TCS, 27mm internal width, 29″, tubeless ready
Front Tire: Maxxis Forekaster EXO TR 29×2.40″
Rear Tire: Maxxis Rekon EXO TR 29×2.40″
Spokes/Nipples: Stainless steel
Valves: WTB tubeless
Sealant: Stan’s NoTubes, 250ml

Weight

13.64 kg (30 lbs)
