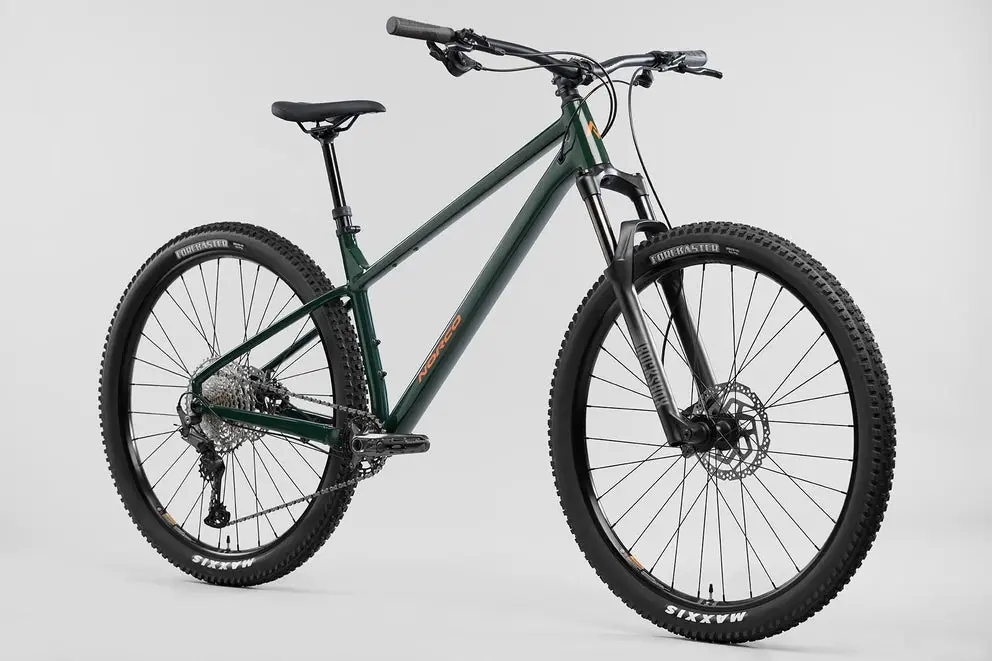

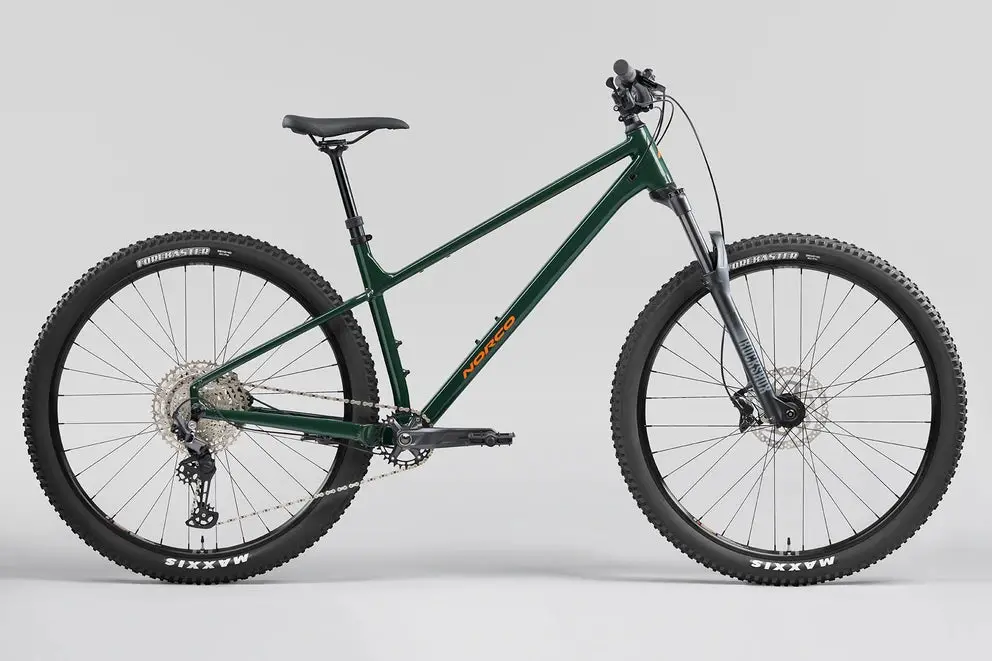

Norco Charger A1 Hardtail Mountain Bike – Trail-Oriented Aluminum Frame

Description

The Norco Charger A1 is a modern 130mm hardtail built to deliver confident trail handling, reliable Shimano Deore performance, and progressive geometry for riders ready to push their skills further.

Specifications

Frameset

Frame: Smooth-welded aluminum, 12x148mm Boost, tapered head tube, UDH hanger
Fork: RockShox Judy S TK Air, 130mm travel, 51mm offset, 15x110mm Boost

Drivetrain

Shifter: Shimano Deore SL-M6100-R, 12-speed
Rear Derailleur: Shimano Deore RD-M6100, SGS
Crankset: Shimano Deore FC-MT512, 30T
170mm (S, M)
175mm (L, XL, XXL)
Bottom Bracket: Shimano BB-MT501, BSA 68/73mm
Cassette: Shimano Deore CS-M6100, 10–51T, 12-speed
Chain: KMC 12-speed

Brakes

Front Brake: Shimano Deore BD-MT410, 180mm RT-26 rotor, resin pads, Center Lock
Rear Brake: Shimano Deore BD-MT410, 160mm RT-26 rotor, resin pads, Center Lock
Brake Levers: Shimano Deore BD-MT410

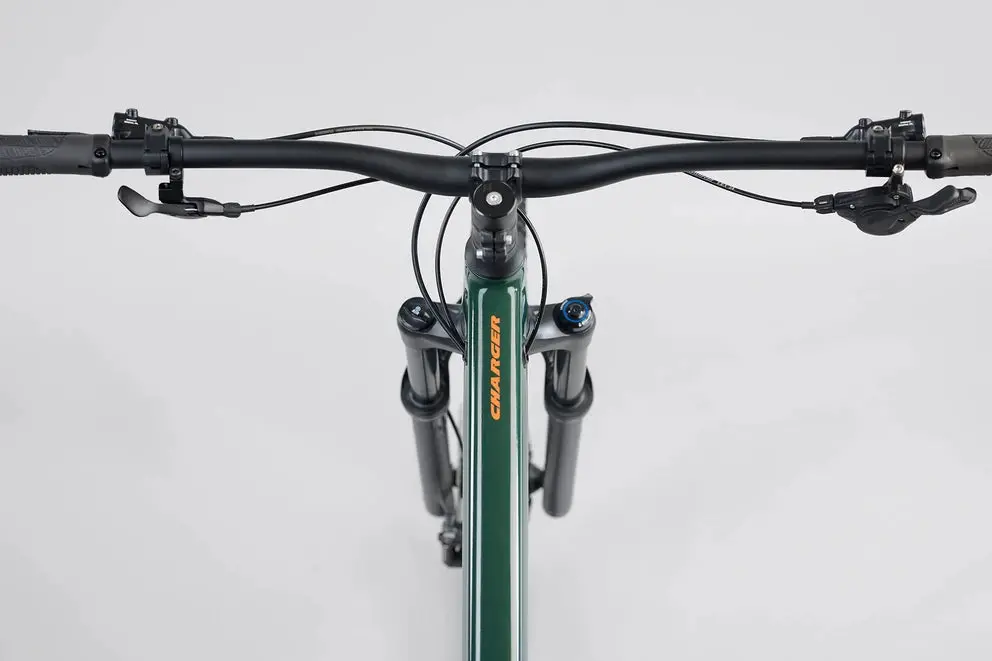

Cockpit

Handlebar: Norco aluminum, 780mm width, 30mm rise
Stem: Alloy, 40mm length, 31.8mm clamp
Grips: DDK lock-on, 139mm
Headset: Sealed cartridge bearings, IS42/28.6 | IS52/40
Spacers: 3x 10mm

Seatpost & Saddle

Seatpost: X-Fusion Manic LC, 31.6mm
130mm drop (S)
150mm drop (M)
170mm drop (L–XXL)
Saddle: WTB Volt Sport, medium
Seatpost Clamp: Norco alloy, bolted, 34.9mm
Pedals: Nylon flat

Wheels

Rims: WTB ST TCS 2.0, 27mm internal width, 32H
Front Hub: Formula DC-511, 15x110mm Boost, Center Lock
Rear Hub: Formula DC-3248, 12x148mm Boost, HG, Center Lock
Tires: Maxxis Forekaster
29×2.4″ (29″)
27.5×2.25″ (S)
Spokes: Stainless steel, 14g

Weight

13.54 kg (29.8 lbs)
Measured Size: L
