Description

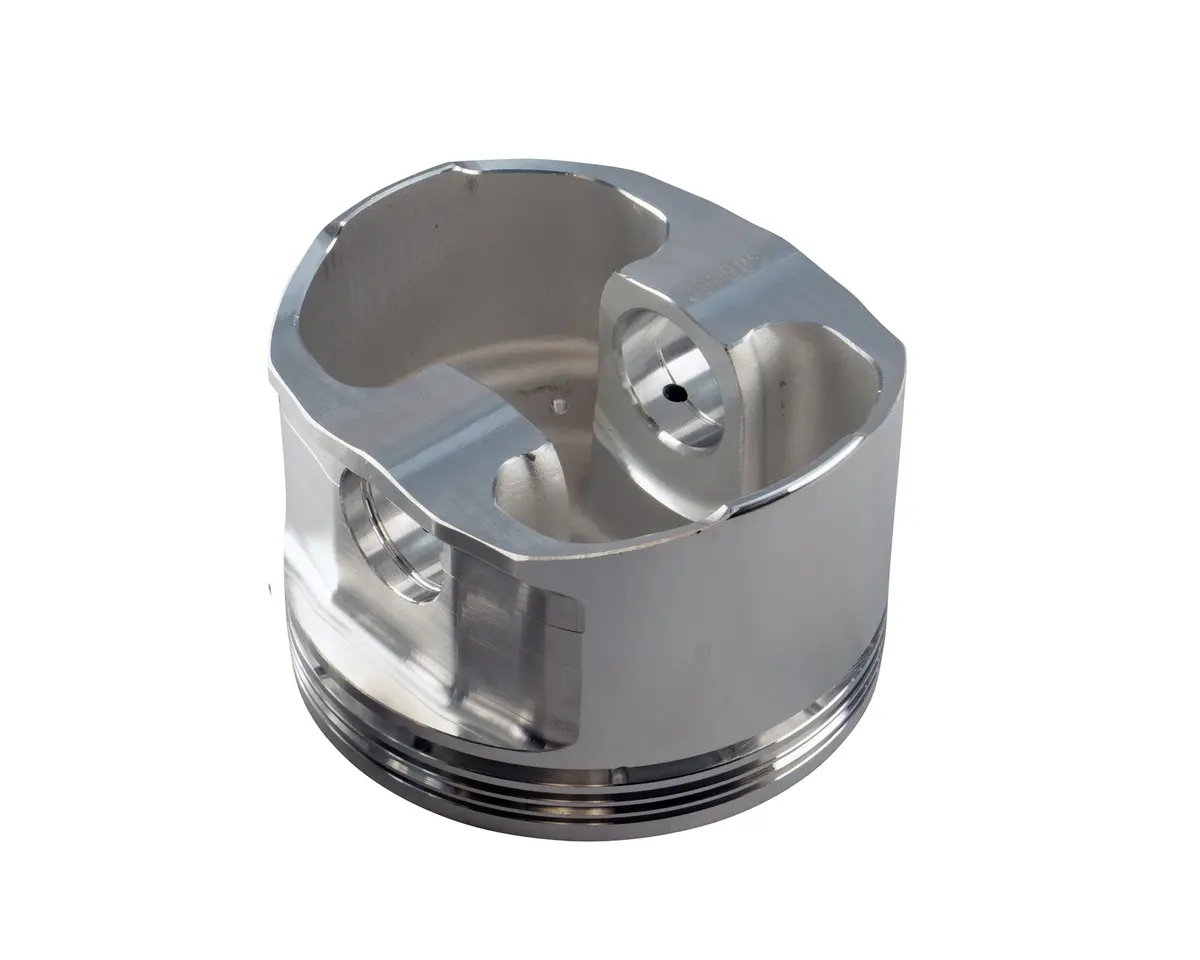

Engineered in house and manufactured by CP/Carrillo, these motorsport grade forged pistons are designed to be used with a 72.75 mm stroke crankshaft and standard 4.800″ C to C length connecting rods. Modern rings packs ensure maximum sealing resulting in optimal power and performance.
Engine Displacement Bore: 83mm x Stroke 72.75mm – 1575cc
Your engine block will require machining, contact us for details.
- Made in the USA
- Bore 83mm / 3.268″
- Compression height 1.530″
- Dome height .000″
- Pin diameter .812″
- Pin Oiling feature
- Piston Weight 305 grams
- Top Ring 1mm
- Second Ring 1.2mm
- Oil Ring 2.8mm
